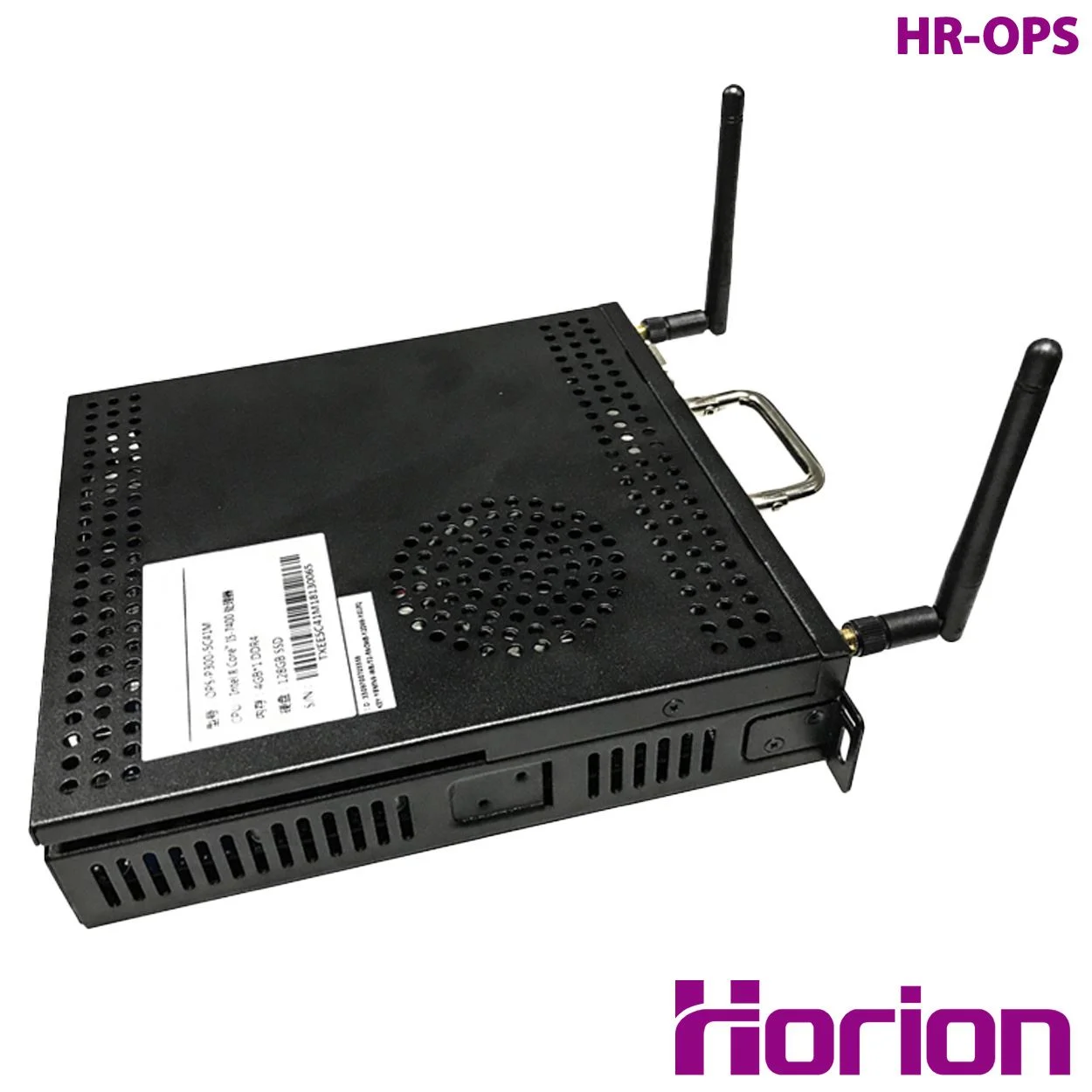

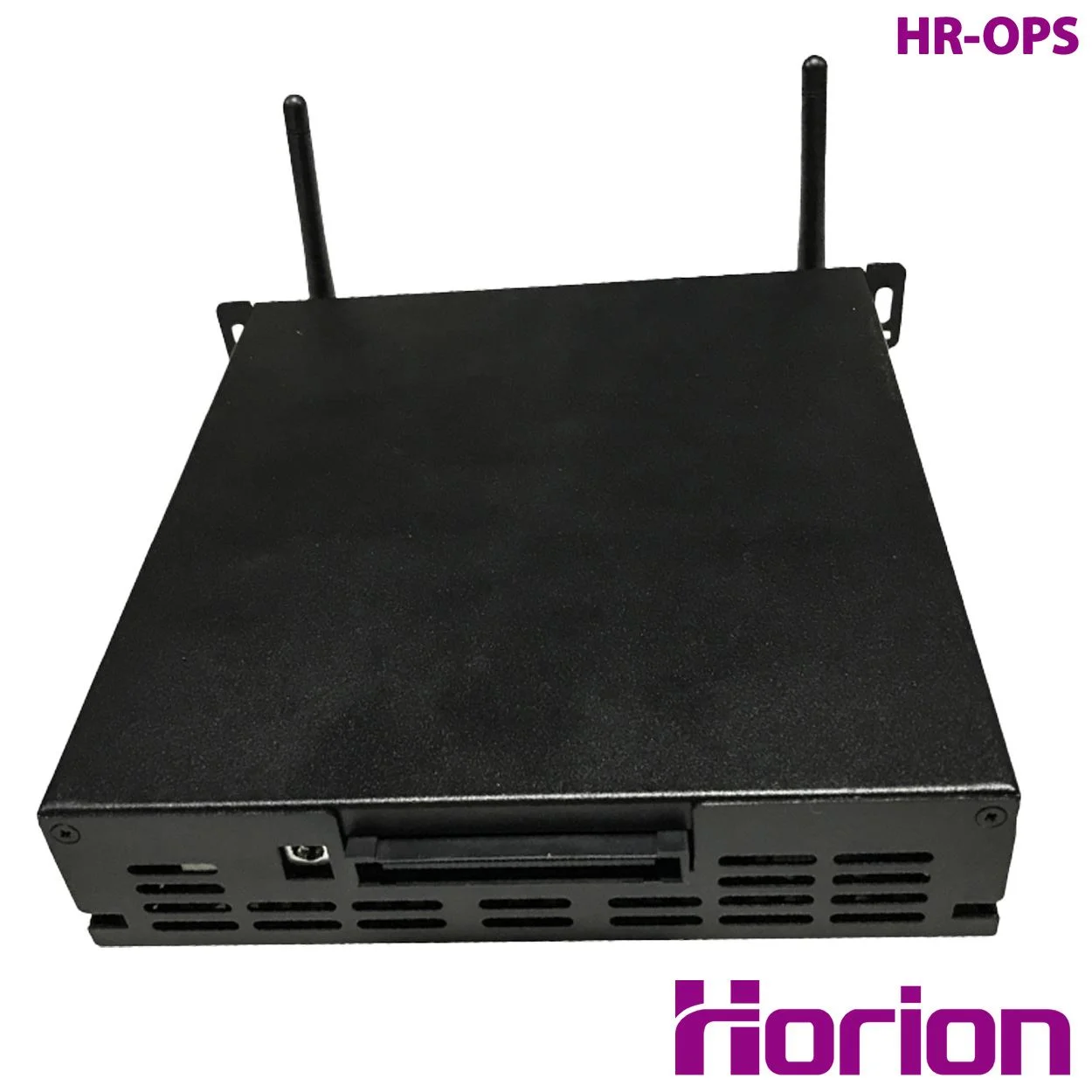

The OPS computer is an optional accessory made specifically for Horion interactive panels and displays, enabling dual-system operation. It's an industrial-grade mini host designed for top performance, ease of use and low running costs, and its compact build makes it easy to transport and install.

Easy to use and install: the "Plug and Play" concept

The OPS mini host is built on x86 architecture that complies with the Intel OPS standard. Once connected to an OPS-compatible display, it works as a full Windows computer.

Thanks to the "Plug and Play" design, installing, removing, upgrading and deploying it is quick and simple.

• Fewer cables: fewer wired connections to deal with.
• Lower costs: reduced electricity bills, maintenance costs, and costs related to after-sales service and R&D.
• Easy maintenance: upgrades and servicing are simpler.
• Space-saving: the compact size takes up less room.

Powerful hardware

The OPS computer is fitted with a powerful chip and solid components, so it runs quickly and smoothly:

• Processor: supports 9th generation Intel processors (Skylake-S/Kabylake-S LGA1151).
• Interface: standard Intel OPS-C+ interface, compatible with OPS-C.
• Video: HDMI 2.0 support, maximum video resolution 4K@60Hz.
• System drive: supports an MSATA system drive for fast start-up, plus a one-button reset function for a better user experience.
• Cooling: quiet copper thermal module with a dual roller fan and a smart fan function.
• Connectivity: 4x USB 3.0, 2x USB 2.0, 1x HDMI, fast wireless data transfer via Wi-Fi 802.11 a/b/g/n T3R MIMO with a single or dual antenna.

Technical specification:

• Processor: Intel Core i7-12650H
• Platform: Alder Lake
• Storage: 1x M.2 512GB SSD
• RAM: 1x 16GB / 2x 8GB DDR4
• LAN: integrated 10/100/1000M network card
• Wi-Fi: Intel AX101
• Integrated graphics: Intel UHD Graphics for 12th generation Intel processors
• Bluetooth: Bluetooth 4.2

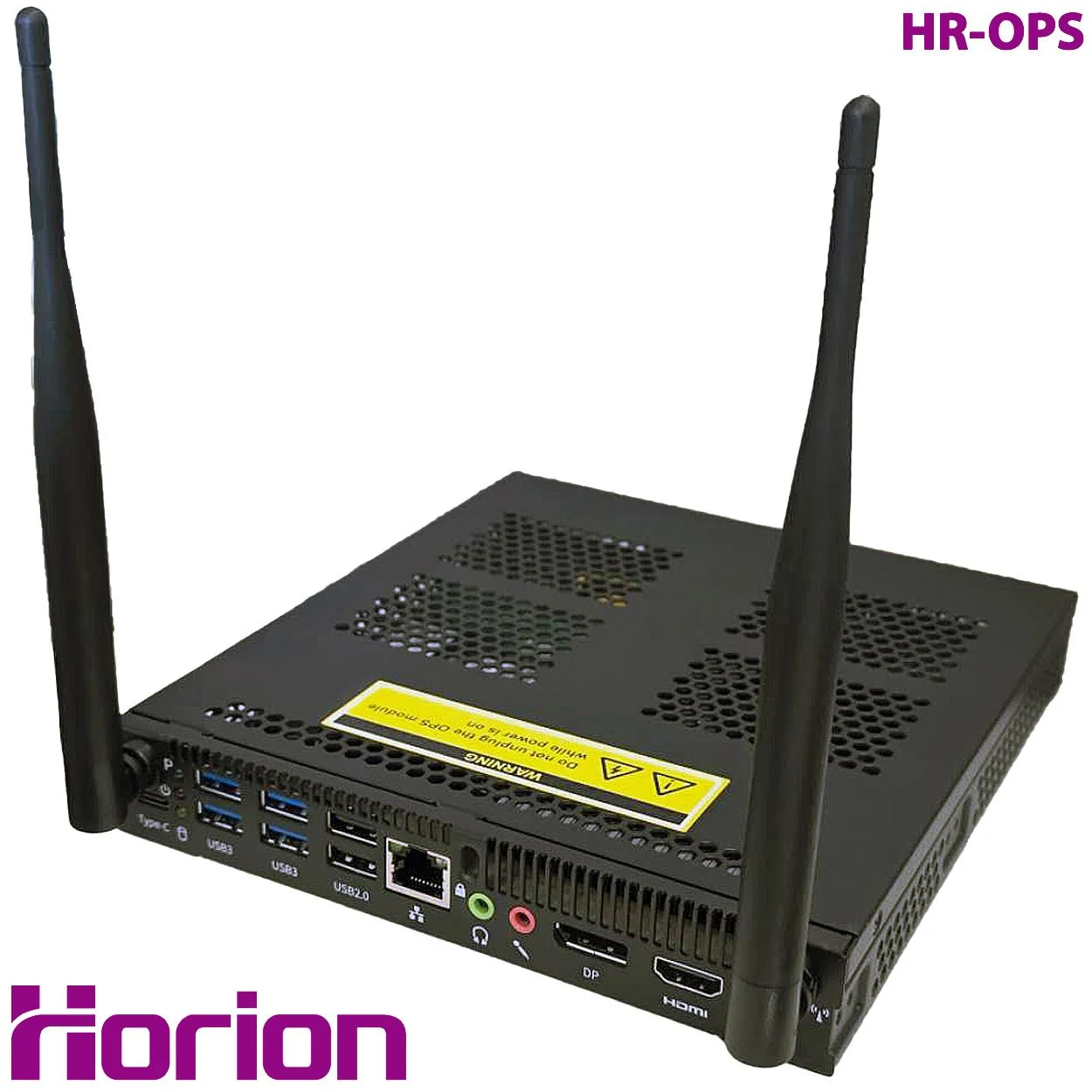

• Ports: 2x USB 2.0, 4x USB 3.0, 1x USB-C, 1x RJ45, 2x BT/Wi-Fi antenna, 1x HDMI, 1x DP
• Cooling system: single copper heatsink and single fan
• Power supply: 12V-19V DC
• Dimensions: 180mm x 195mm x 30mm
• Operating temperature: 0 - 40°C
• Operating humidity: 10% - 90%
• Storage temperature: -20 - 60°C
• Storage humidity: 10% - 90%
• Weight: 1.25kg
